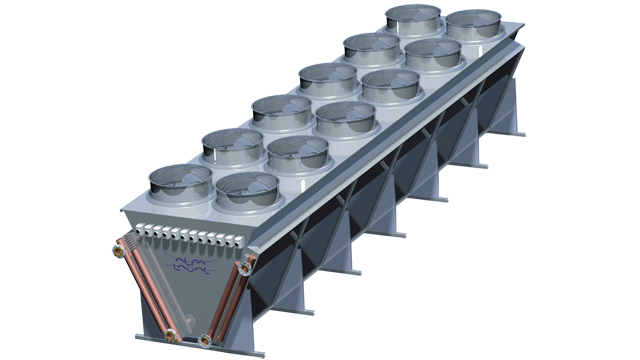

Fincoil Solar Max SXG
Les aéroréfrigérants Fincoil Solar Max SXG sont utilisés pour refroidir l'eau du condenseur dans les installations de climatisation et de réfrigération. Dans l'industrie de transformation, les refroidisseurs secs conviennent au refroidissement en circuit fermé de divers liquides de traitement. La gamme Fincoil Solar Max est particulièrement adaptée lorsque des capacités élevées par rapport à l'espace disponible et consomme peu d'énergie.
Coil manufactured from copper tubes ø 12.7 mm and corrugated Alu-fins, tube pitch 35 x 30.31 mm. Standard fin spacing is 2.3 mm.
Casing and framework of corrosion resistant, hot dip galvanised sheet steel.
- Fan motors
2 to 12 axial fans available in a range of different fan speed executions, diameters 914 or 1240 mm. Enclosed design fan motors, protection class IP-54, class F insulation. Motors are wired to the fans’ safety switches (IP65) at the end of the unit. All fans have corrosion resistant fan blades and fan guards.
For a full overview of all available options and additional technical specifications please refer to the product leaflet.
- All liquids that do not corrode copper
- Capacities: 146 up to 1638 kW
These air heat exchanger products can be configured and selected using the FincoilSelect selection tool.
Cold Room Calculator
Mobile app for iOS & Android to calculate the expected heat load for your cold room.
Cold Room Calculator
Additional product information
Find manuals, electrical drawings, CAD drawings, High Resolution pictures and certificates.
Alfa Laval finned coil air heat exchangers have been designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. The ‘heart’ of our air heat exchangers is the finned coil, built up from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface. Thanks to the combination of key design variables (coil materials, coil geometry, casing design, fan type), air units are very versatile heat exchangers with a great variety of applications in many industries. Alfa Laval supplies finned coil air heat exchanger products for a wide variety of applications.
Air-cooled liquid coolers (radiators/dry coolers)
Air heat exchangers may be used to cool various process liquids. For this application hot process liquid flows through the tubes. This liquid is cooled by the relatively cold ambient air that is forced through the coil.
Air heat exchangers for process liquid cooling are referred to as 'radiators'. Air-cooled liquid coolers for HVAC applications and total energy systems are referred to as 'dry coolers'.
